Caterpillar has introduced the next generation 6040 hydraulic mining shovel, a 400-tonne-class machine featuring productivity, durability and efficiency upgrades across its hydraulic, powertrain and operator systems.
Central to the new design is a hydraulic optimisation system that uses variable, on-demand oil flow to reduce excess heat, conserve energy and extend component life. Unlike conventional systems that operate at maximum flow and pressure regardless of demand, the 6040’s system dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure each hydraulic function requires. Caterpillar says this makes the new machine up to 15% more efficient than shovels without the technology.
The shovel is powered by twin Cat C32B engines with 1,550kW (2,079hp) output, enabling operation or repositioning under the power of a single engine. Multiple engine configurations are available to meet US EPA Tier 4 Final/Stage V or China Nonroad Stage III emissions standards. An optional oil change interval extension attachment increases engine oil exchange intervals from 500 to 1,000 hours.

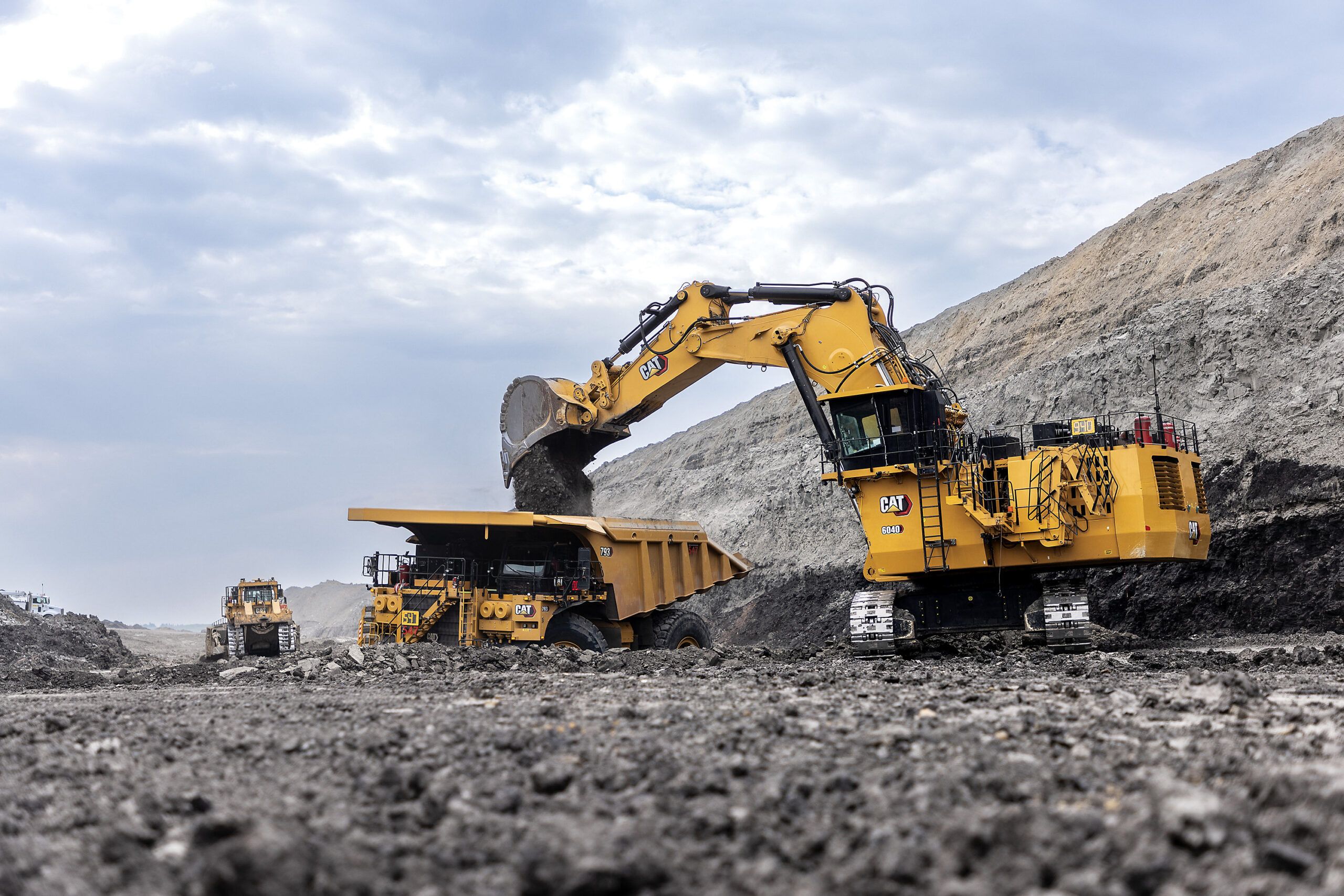

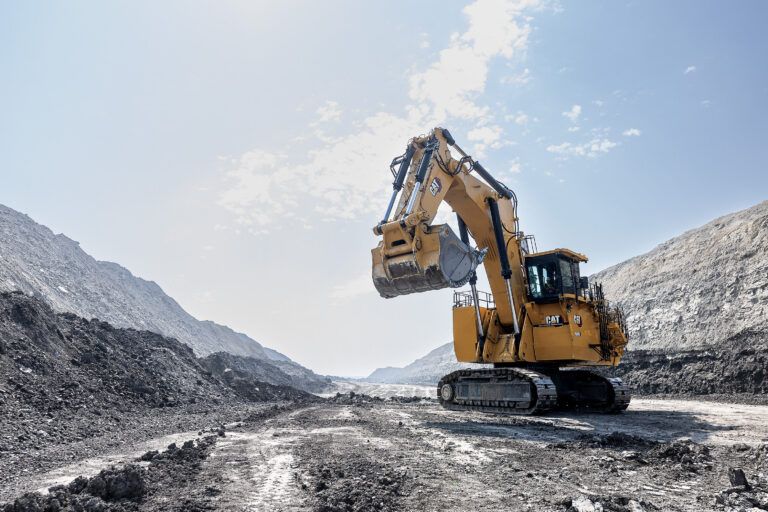

Breakout forces reach 1,201kN (269,996lbf) in face shovel configuration and 1,123kN (252,460lbf) with backhoe, while a closed-loop swing system delivers fast cycle times and improved energy efficiency. The shovel loads the 147-tonne Cat 785 in four passes and offers eight-pass loading of the 327-tonne Cat 796 AC.
“Customers are looking for ways to move more material without increasing fuel consumption or downtime. With the new 6040 design, we focused on delivering high breakout forces and fast swing cycles while at the same time increasing fuel efficiency through hydraulic optimization. Similar to the next generation 6060, the new 6040 integrates proven Cat electronics infrastructure to help enhance performance and reliability, while a common design helps streamline maintenance and reduce downtime,” says Nils Feddern, senior product consultant, hydraulic mining shovels at Caterpillar.
Standard operator assist – enhanced motion control incorporates angle sensors on the linkage to calculate boom and stick positioning, preventing hard stops and metal-to-metal contacts. The system reduces pressure spikes and shock feedback, improving operator performance and reducing fatigue.

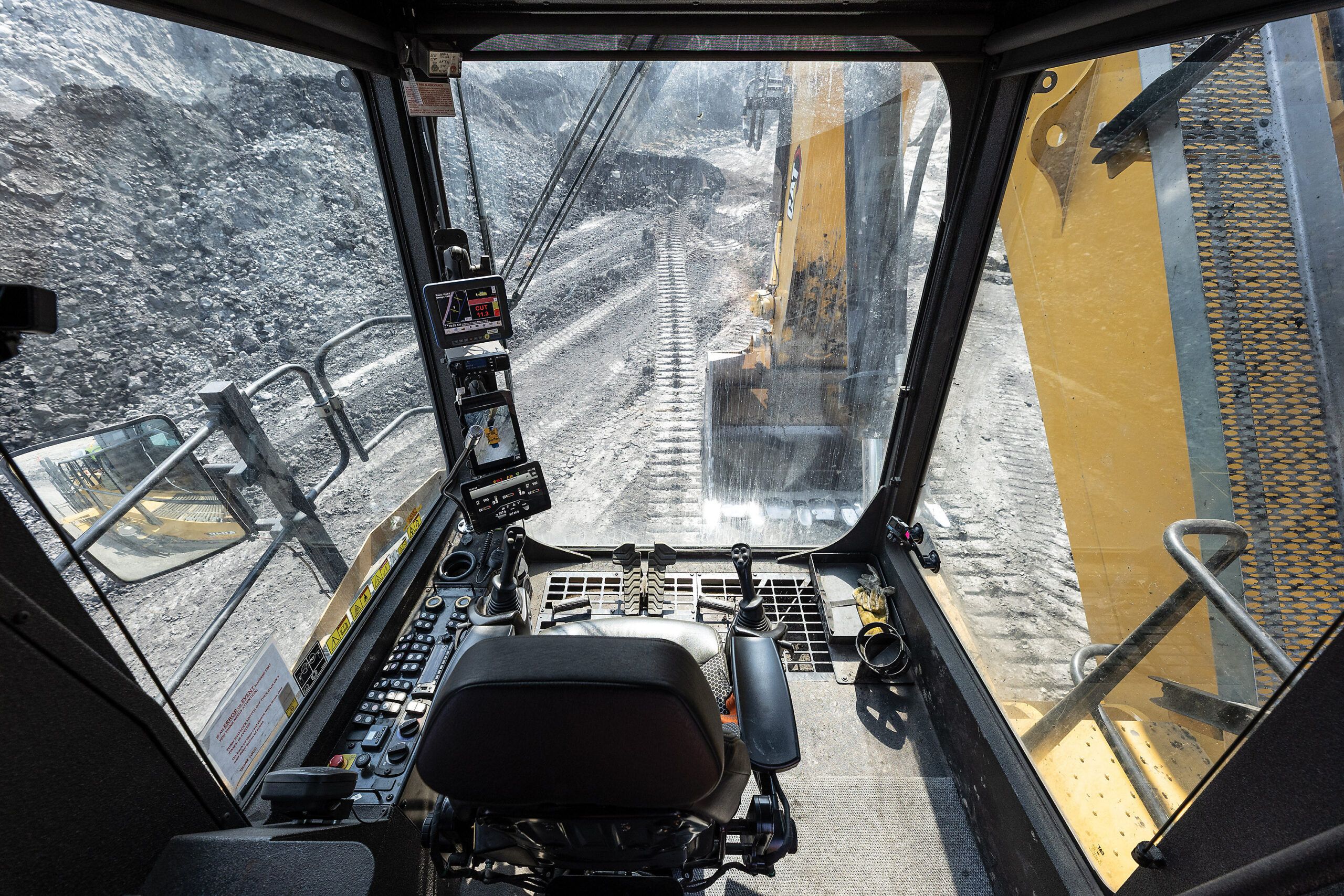

The redesigned cab includes a floor window providing clear views of the tracks and 40% greater overall visibility of digging and loading areas. Interior noise levels are rated at 68dBA, and the cab features a new air conditioning system, ergonomic joystick controls and a left-side-mounted monitoring and diagnostic tower with a 254mm (10in) touchscreen, live sensor monitoring and visual and acoustic fault warnings. Caterpillar’s patented three-seat layout – comprising a fully adjustable operator seat, an elevated trainer seat with laptop work desk, and a fold-away auxiliary seat – supports in-cab training. Standard Vision 360 integrates four camera views on the touchscreen to provide a surround view of the shovel.
“One of the first things our field-follow machine operators comment on is the shovel’s power and swing speed,” says Feddern.
A new 45-degree hydraulically operated access stairway provides safe ingress and egress, with emergency lowering capability when the engines are shut off. The shovel’s five-circuit hydraulic system allows for two cylinder motions, two travel motions and swing.
The 6040’s cab riser features integrated Cat electronics and an optimised electronic architecture, with standard ProductLink Elite connectivity and retrofit capability for Cat MineStar technology solutions including Fleet, Terrain, Detect and Health. The design also accommodates retrofit of an electric power module for future power-agnostic operation.
Engineered for a target design life of at least 60,000 hours, the new 6040 is 2.25% heavier than its predecessor and features heavy-duty fixed-axle rollers and idlers that eliminate grease consumption. A single-line grease injection system paired with fixed-pin architecture simplifies the grease distribution system, reducing the risk of line breakage and improving diagnostics. All service areas are accessible via anti-slip walkways, and a retractable service station provides access to coolant, hydraulic oil, slew gearbox oil, grease, diesel and engine oil. Standard remote services include remote troubleshoot and remote flash for software updates without requiring a technician on site.
