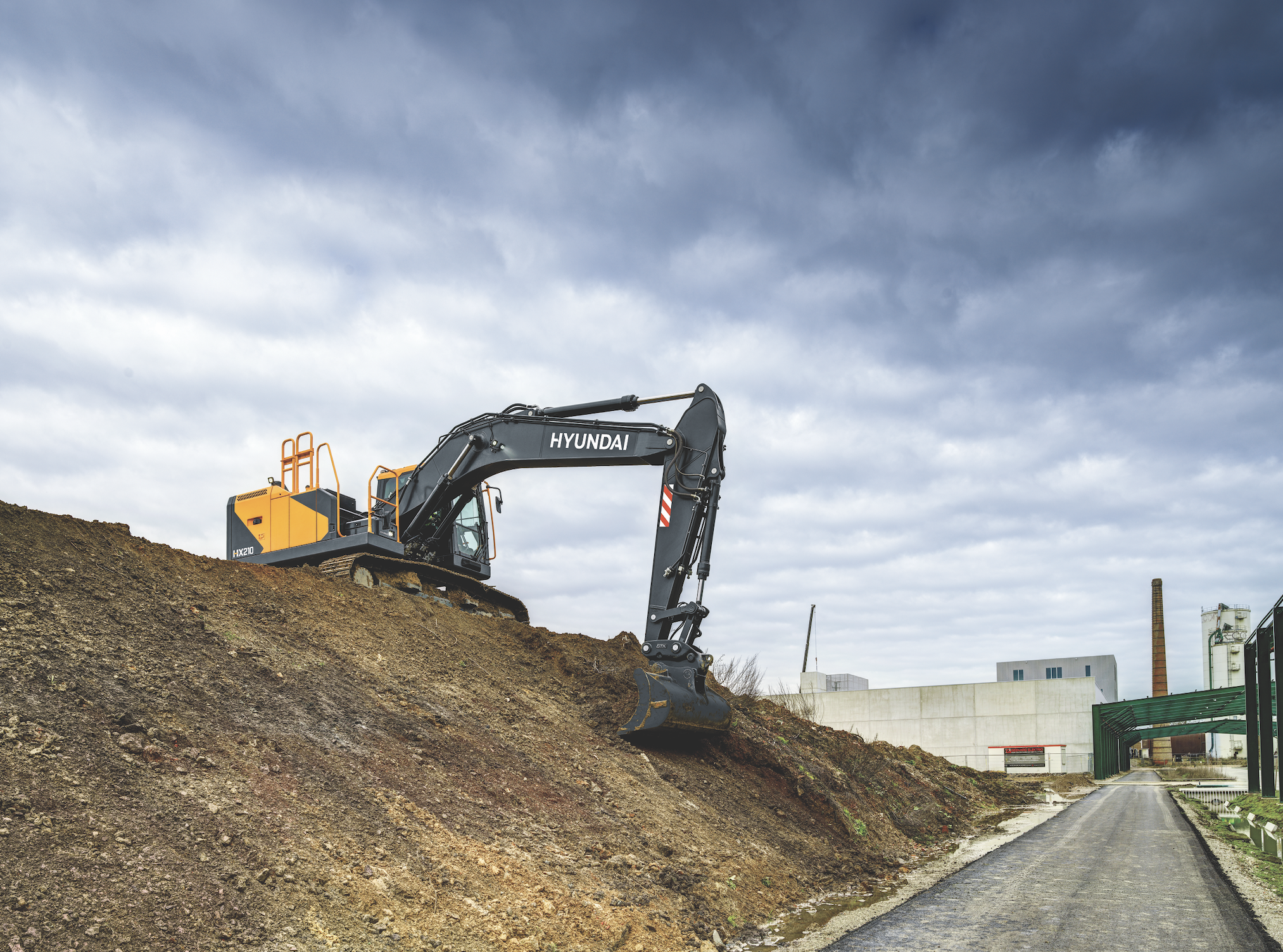

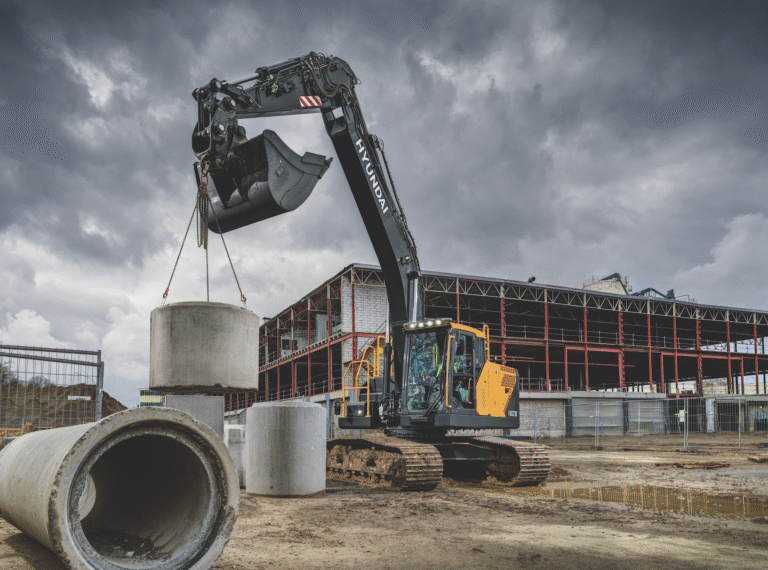

Hyundai Construction Equipment has introduced the HX210L crawler excavator to its Next Generation lineup. The 22-tonne machine is built on the same platform as the HX230L and has been developed to sit alongside it in the range, with a specification tailored to the plant hire and rental markets.
The HX210L is powered by the Hyundai DX05 diesel engine, using a wastegate turbocharger in place of the twin-turbo configuration on the larger HX230L. The engine produces 830Nm of torque — a 6% increase over the previous HX210A L — and delivers a 7% reduction in fuel consumption and 30% less AdBlue consumption compared to its predecessor. An engine-mounted cooling fan clutch is fitted to support fuel efficiency.
The hydraulic system uses proven pilot controls with virtual bleed-off (VBO), an energy control system that combines an electronically controlled main control valve with a high-performance central processing unit to optimise real-time output flow and eliminate energy losses.
The upper structure has been reinforced with increased channel height and a revised counterweight mounting design to improve structural rigidity. The swing bearing has been upgraded to deliver increased dynamic and static thrust capacities, with higher swing torque providing improved rotating performance. A standard 4,200kg counterweight — 10% heavier than the A-Series model — is fitted to maximise stability and lifting capacity. The counterweight features the Tiger Eye rear design seen across other Next Generation machines.
The HX210L is equipped with Hyundai’s 12.8-inch full HD touchscreen monitor and the Next Generation premium cab, which includes redesigned control levers, improved ventilation and enhanced interior lighting. The climate control system incorporates a Discharge Air Temperature sensor and dual solar sensors. Service intervals are set at 1,000 hours, and the revised urea tank delivers an 18.8% increase in AdBlue capacity. Standard integrated grease feed lines improve pin lubrication, and side service access is provided for upper structure inspection and maintenance.
Image: Hyundai Construction Equipment
