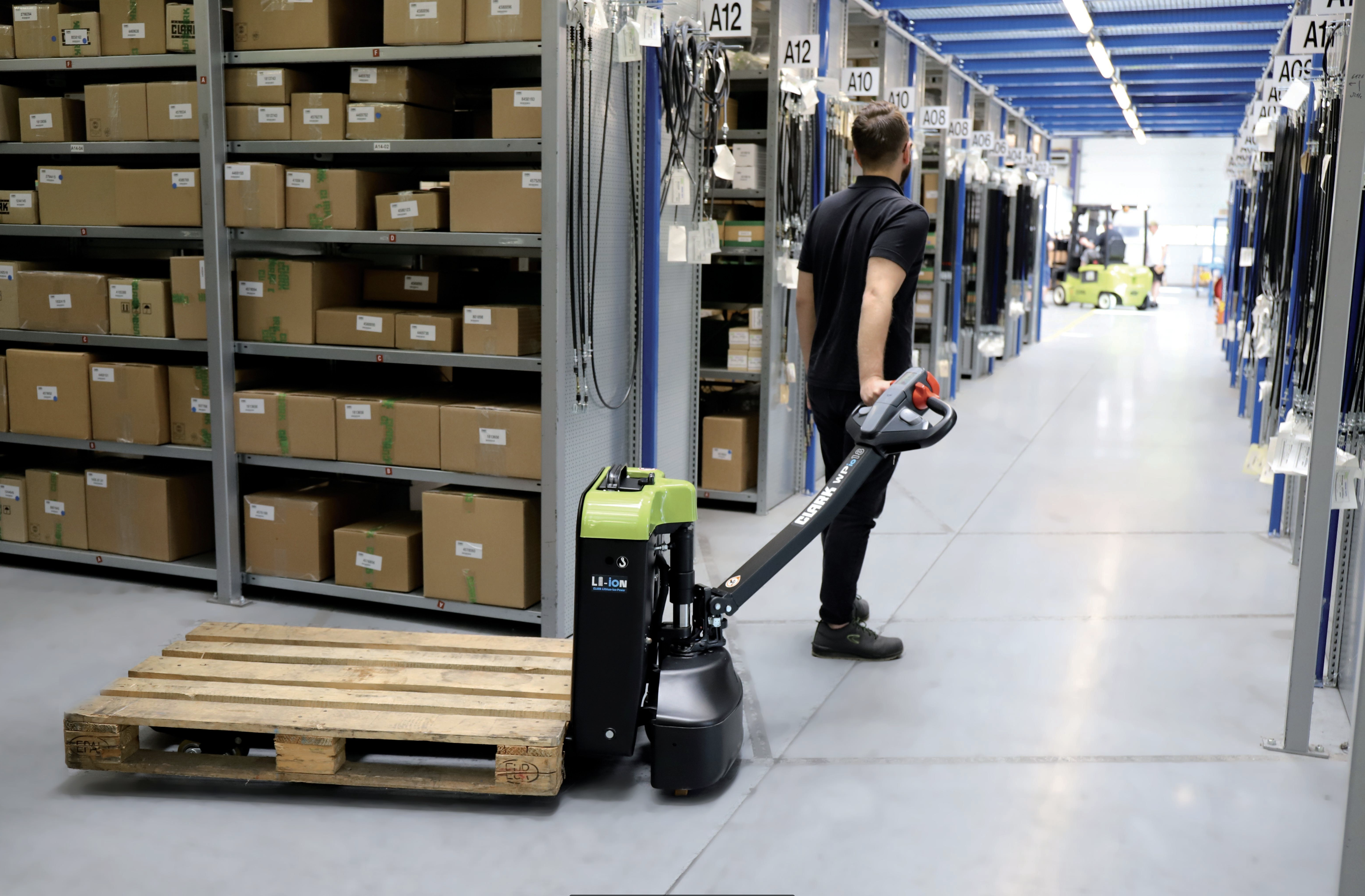

Following the launch of its pedestrian low-lift pallet truck and pallet truck with folding driver’s platform, Clark is presenting two further electric low-lift trucks with Li-ion technology and load capacities of 1,500 and 1,800 kg; namely the WPio15 and WPio18. The materials handling vehicles manufacturer thus has a complete series of low-lift trucks with load capacities of 1.2 to 2 tons.
The models of the WPio series are designed for efficient goods transport over short distances in distribution centres, production or warehouses. All vehicles are equipped with the durable and powerful Li-Ion battery. This makes them reliable helpers in industry, trade and logistics. With the help of purely electric lifting and lowering, the operator can move heavy loads ergonomically and efficiently without much physical effort. The compact vehicles also score points for their maneuverability. Especially in confined spaces, such as in storage areas or sales rooms, and also on ramps, they prove their ability due to their good climbing ability.
Versatile and efficient
The WPio15 has a maximum load capacity of 1,500 kg. The versatile low-lift truck is equipped with a 24 Volt (30 Ah) Li-Ion battery and transports light loads reliably and safely at a maximum speed of 4.5 km/h. The user-friendly tiller arm can be operated intuitively by both right- and left-handed operators. To ensure safety in application, the vehicle brakes automatically when the tiller is released. Optimally adjusted lateral support rollers improve stability when cornering. With an L2 dimension of only 400 mm and a turning radius of 1,390 mm, the WPio15 is compactly built and ideally suited for use in confined spaces and for carrying on trucks. The weight of this flexible storage assistant is only 160 kg including battery.
The WPio18 is equipped with a 48 Volt (20 Ah) Li-Ion battery, making it the powerful all-rounder of this series. With a maximum load capacity of 1,800 kg and a driving speed of 5 km/h, the truck is ideally suited for transporting medium-heavy loads. The WPIo18 also brakes automatically when the tiller is released. Its L2 dimensions and turning radius correspond to the values of the WPio15 – with a tare weight of 170 kg including battery. This means that this vehicle is also compact and ideal for confined spaces and for carrying on the truck. The ergonomic tiller with its easy-grip positioning of the controls is suitable for both right- and left-handed operators. The Smart Display integrated in the tiller provides information about important driving parameters, such as battery level, operating hours, driving program, display of error codes and battery management. The truck is started via Smart Key to protect the vehicle from unauthorized access.
Together with the WPio20 low-lift pallet truck with a load capacity of 2,000 kg, which is designed for tougher applications, Clark now offers its customers a complete low-lift pallet truck series for a wide range of applications. Extensive additional equipment is available so that customers can adapt the trucks to their specific application. With the help of these and Li-Ion technology, efficiency in use can be significantly increased and operating costs reduced.
Li-Ion power ensures high availability and low operating costs
The WPio series and the Li-Ion technology offer many advantages to the operator: The high energy density of the battery enables high driving performance and availability. Intermediate charges, for example during breaks, can be used to extend operating times without limiting service life. The user can choose between two battery charging variants. Using the internal charger, the vehicle can be connected to any 230 Volt socket to charge the battery using the plug on the charger. The second battery charging variant, in the form of optional handy exchangeable batteries weighing only 10 or 14 kg, ensures longer service life, for example in multi-shift operation. The exchange battery can be replaced by the empty battery in the vehicle with a single movement.
The operator also benefits from numerous advantages that have a positive effect on operating costs: Compared to the block battery, the Li-ion battery has a longer service life. There is no additional effort for maintenance work around the battery acid, as the Li-ion battery is maintenance-free. Intermediate charges can be carried out without a special charging compartment, and the charging location does not need to be ventilated as with lead-acid batteries, since no gassing occurs.
